LED路灯
LED road lamp
适用范围：
适用于城市支路，二级以下公路，人行道，广场，学校，公园，居住区，厂区以及其他需要室外功能性照明的场所。
Scope of application:
Applicable to the city branch, the following two roads, sidewalks, squares, schools, parks, residential district, factory and other places that require outdoor functional lighting.
基本技术参数：Specification
型号规格
Model specification
|
额定电压
Rated voltage（V）
|
功率
Power（W）
|
防爆标志
Explosion proof marks
|
防腐等级
Anticorrosion grade
|
防护等级
Protection grade
|
LD-L085
|
AC85-265V
|
85W
|
ExdII CT6
|
WF2
|
IP66
|
LD-L120
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP66
|

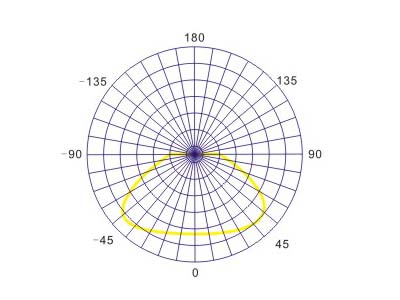

配光曲线：Light distribution curve:

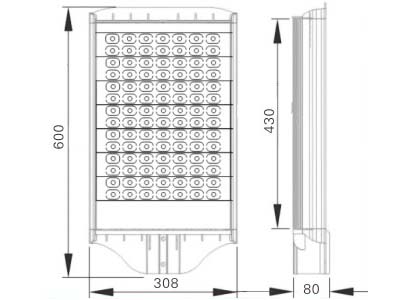

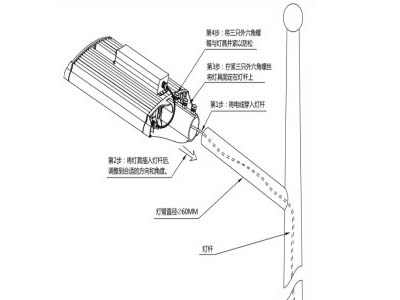

外形尺寸及安装方式 Outline dimensions and mounting method
